Key Model Specifications

Latitude C810

all in one design, Large brilliant display

Intel Pentium® III 1130MHz Processor 64bit AGP 4X Bus

20GB Hard Drive (20000mb)

256MB PC 133 Memory (expandable up to 1025mb)

15" TFT UXGA+ Active Color Screen with ATI 14mb M4 Mobility 1600x1400 Resolution

CDRW/DVD combo Drive and 3.5" Floppy Drive, all internal

10/100 Network Card (internal)

56K Fax/ Modem (internal)

Modular design for, Zip drive, LS 120 Drive, 2nd Battery and 2nd HDD

Rechargeable Lithium-Ion battery.

IEEE 1394 Fire wire Port, 2USB & 1 IrDA Infrared Wireless Data transfer Port

Svideo TV Port

Universal AC Adaptor

Two built in mouse system. TouchPad and TrackPoint

Sound Blaster compatible stereo sound with two speakers and a built-in microphone

Windows XP Home

Grade A Refurbished with 90 Days Warranty

Overview

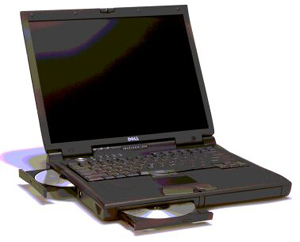

Refurbished Dell Latitude C810 Laptop

The Dell™ Latitude™ C810 is the first C-Family notebook to feature a flexible all-in-one design enabling the simultaneous use of two optical drives or other C-Family modules through the media bay, for added flexibility and convenience.

The C810 is built for performance, with an Intel® Pentium® III processor 1130 MHz, and an Intel 815e chipset to support features such ATA-66 & ATA-100HDDs and 4X AGP graphics, plus a high-resolution 15" UXGA+ TFT display with 16MB of video memory and OpenGL support, making it the ideal desktop replacement.
True to the Latitude C-Series legacy, the C810 retains backwards and forwards compatibility with all Latitude C-Family media modules and docking solutions.
High performance
Incorporating the latest Intel mobile Pentium III processor 1130MHz, with 256KB on-die L2 cache. This is in combination with the Intel 815e chipset, which supports 4X AGP graphics and ATA-66 & ATA-100 hard drives to deliver a truly high performance mobile platform.
Spectacular graphics
Equipped with a high resolution 15" UXGA TFT (1600 x 1400), integrated ATI M4 graphics incorporating 128 graphics accelerator and 4X AGP support, the C810 is available with a massive 16MB SGRAM, to deliver blazing graphics performance.
Versatile 3-spindle design
The C810 is the first C-Family all-in-one design, allowing simultaneous use of two optical drives or alternatively a single optical drive and another C-Family module, providing a high level of flexibility and configurability. It incorporates a fixed optical bay for a CD  Drive, in addition to a C-Family media bay for other C-Family modules.
Integrated communications
The C810 features an integrated combo 56K v.90 and 10/100 Base-TX Ethernet mini PCI card as standard, supporting Wake-on-Ring and remote systems management capabilities, which also supports Wake-up-On-LAN.
Dell DualPoint capability
The Dell DualPoint integrated pointing device, which incorporates both a touchpad and a track stick, gives the flexibility for using either device or both at the same time.

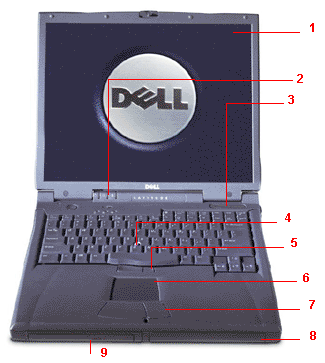

Front Side View	1. Display : 15" TFT Active Screen with 1600X1400 Resolution 2. Status indicator : LED Status indicators 3. Vent 4. TrackPoint Mouse 5. TrackPoint Mouse Buttons :  6. Touchpad Mouse 7. Touchpad Mouse Buttons 8. Battery Bay 9. C Family Bay: Currently occupying Floppy Drive, also accepts: CD Drive, DVD Drive, CDRW Drive, CDRW/DVD Combo drive, LS120 Drive, Second Battery,
Right Side View		1. Speaker 2. 10/100 Network Connection 3. 56K Modem Connection : 4. IRDA infrared Port Hard Drive enclosure 5. IEEE 1394 port : 7. Audio Ports Microphone jack : 3.5 Speaker jack : 3.5 Headphone Jack : 3.5
Left Side View (DVD Drive)			1. Internal optical Drive: CDRW/DVD combo Drive  2. TV Out Port: S-Video NTSC/PAL 3. Security Slot 4. Speaker
Rear Side View			1. Cooling Fan 2. AC jack : 3. PS2 Port: Mouse or Keyboard 4. External Display port : 5. Docking Port 6. Printer Port 7. 9Pin Serial Port  8. 2 USB Ports

Detail Specifications

	Intel® Mobile Pentium® III processor at 1130 MHz with SpeedStep™ technology
	32 KB Internal Cache (L1)
	On-die 256 KB cache ( Pentium® III)
	133 MHz external BUS frequency
	Intel Mobile 815e chipset

Memory

	256 MB SDRAM standard, upgradeable to 1024 MB
	SDRAM configurations include 32, 64, 96, 128, 192, 256, 384 and 512 MB
	2 SoDIMM sockets

20 GB1 Ultra ATA 66 hard drive

Optical Devices:

CDRW/DVD combo Drive

Media:

	Ultra 3.5-inch, 1.44 MB diskette drive (included)

	SoundBlaster® Pro compatible voice and music sound card
	ESS Maestro 3i audio chip providing 3D positional sound

128bit ATI 4x AGP 32MB ATI mobility M4 video graphics card

Displays:

	15-inch TFT UXGA active-matrix display
	Up to 1600 x 1400 x 16 M resolution
	LED status display

	(2) Type I or Type II cards or (1) Type III card
	3.3 and 5 V cards supported
	Hot-swappable

two multi-purpose media bay for CD-ROM, 100MB Iomega® Zip® drive, diskette drive or extra battery

	9-pin serial connector
	25-hole pin parallel connector
	Serial infrared communications port (lrDA-1.1 compliant)
	Audio jacks: headphones (same as line-out), external mic-in
	15-pin monitor connector
	6-pin PS/2-style keyboard, mouse, and keypad
	USB (Universal Serial Bus) 4-pin connector
	S-Video for TV out IEEE 1394 fire wire

Optional:

internal 56K capable2 v.90 modem

Network Interface:

internal 10/100 Network card

	Keyboard: 87 keys (US and Canada)  with integrated numeric keypad and 12 function keys
	PS/2™compatible Touchpad pointer; 20 points/mm (500 points/inch) resolution - Single Point standard, DualPoint optional

Microsoft Windows® XP Home

	Height: 45 mm (1.77-inch)
	Width: 331 mm
	Depth: 276 mm
	Weight: 7.2 lbs.

	8-cell "Intelligent" Lithium Ion battery
	53 WHr
	Approximate charge time: ~ 1.25 hours (computer on), ~ 1 hour (computer off)
	Approximate operating time: 30min to Over 3 hours per battery

AC Adapter:

	Input voltage: 90 to 264 VAC
	Input current (maximum): 1.5 A at 90 VAC, full load
	Output current: 3.2 A continuous
	Output power: 60 W
	1.2-inch x 2.4-inch x 4.3-inch (H x W x D), .71lb

	Resolution Assistant - automated technical support
	90 Days Back to depot Parts and labor

	Suspend-to-RAM mode
	Suspend-to-disk mode
	Stand-by mode (turns off LED and HDD)

Warranty
