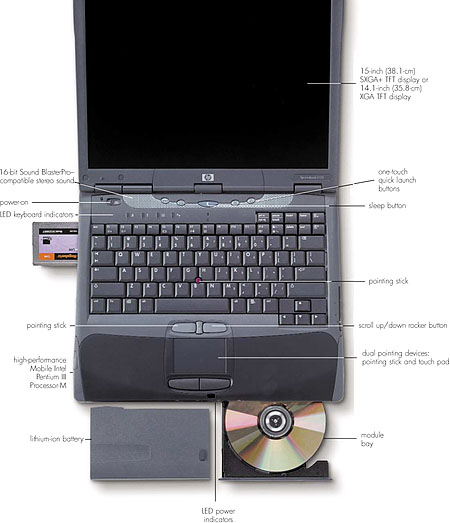

As a business notebook, lightweight notebook, or desktop-replacement
system, the Omnibook 6100 stands out. Its Pentium III chip runs at a
fast 1.13 GHz, and it comes with 256 MB of memory that's expandable to a
full gigabyte. The notebook's large 15-inch screen supports SXGA (1400 x
1050) resolution. An 8x DVD-ROM drive and 30 GB hard disk drive are
included, as are a modem and networking support . Yet all these features
don't bloat the Omnibook: it still weighs in at just 5.1 pounds and
measures less than an inch and a half thick. Loaded with the
corporate-oriented Windows 2000, this is one notebook that's ready for
almost any business use.
HP Omnibook 6100
|
processor and memory |
|
cpu |
1.13GHz-M, 1.00GHz-M, or 933MHz-M Mobile Intel Pentium III
Processor, supporting Enhanced Intel SpeedStep technology
|
|
processor cache |
512-KB internal L2 cache
32-KB internal L1 cache |
|
memory |
128 or 256 MB of PC-133 SDRAM standard
Slot available for expansion to 1 GB using optional
HP RAM expansion modules
Maximum system memory 1 GB (two slots available only for
memory modules; two optional 512 MB modules must be used to
achieve 1 GB) |
|
video |
|
display |
15-in (38.1-cm) SXGA+ TFT 1400 Χ 1050 at 16 million colors
|
|
external video resolutions |
640 Χ 480/16 million colors
800 Χ 600/16 million colors
1024 Χ 768/16 million colors
1280 Χ 1024/16 million colors
1600 Χ 1200/16 million colors
*refresh rate and clarity may vary, depending on monitor,
resolution, and color depth |
|
video card |
ATI Mobility Radeon M6-P graphics controller with 4X AGP
16 MB of internal video Double Data Rate RAM
MPEG-2 hardware acceleration
Dual-display and dual-view capability under Windows 98 SE
Support for software MPEG-2 and Zoomed Video |
|
storage |
|
hard drive |
Industry-standard 30GB removable Enhanced-IDE hard drive (ATA
100) |
|
standard |
Module bay supports:
Standard 3.5-inch (8.9-cm), 1.44-MB floppy disk drive module
(includes floppy disk drive cable)
Standard 24X-max-speed CD-ROM drive or 8X-max-speed DVD-ROM
module depending on configuration |
|
optional modules |
Optional LS-120 SuperDisk module
Optional modules: 24X-max-speed CD-ROM or 20X-max speed CD- RW
drive, 8X-max-speed DVD-ROM drive with software MPEG
decoding, combo DVD-ROM/CD-RW drive, Zip drive, 20-GB or
30-GB second hard drive |
|
audio and ports |
|
audio |
16-bit Sound Blaster Pro-compatible stereo sound
Stereo sound via headphone-out, line-in, microphone-in ports;
two internal speakers
3D-enhanced PCI bus audio with Zoomed Video support
Built-in monophonic microphone |
|

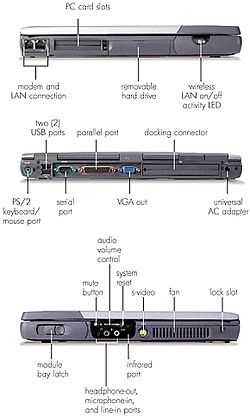

ports |
Two Universal Serial Bus (USB) ports
Serial port: 9-pin, 115,200-bps
Parallel port: 25-pin bidirectional ECP and EPP
4-Mbps IrDA-compliant infrared port
PS/2 keyboard/mouse port; supports Y-adapter (F1469A)
VGA-out port
S-Video port (composite video with F1959A video adapter)
Headphone-out, line-in, microphone-in ports
240-pin PCI connector for docking
RJ-11 and RJ-45 ports for 56-Kbps modem/LAN |
|
communications |
Integrated US Robotics V.90 56-Kbps modem via mini PCI slot with
wake-on-Ring
Integrated LAN (Ethernet 10/100Base-T) with wake-on-LAN, PXE,
and WfM 2.0 compatibility |
|
pc card slots |
One Type III or two Type II PC Card slots
CardBus-enabled
Zoomed Video in lower slot
3.3 Vaux and D3 cold wake-up support |
|
power |
Universal slimline AC adapter: 115- to 230-Vac (47- to 63-Hz)
input; 19-Vdc, 3.16-A output
Rechargeable 8-cell lithium-ion (LiIon) battery with up to
5-hour run time
Up to 8-hour total run time with second LiIon battery when
used with primary battery
Fast battery recharge: 85% in 1.5 hours; 100% in 2 hours
Suspend/resume/save-to-disk feature
Low-battery warning
Advanced Power Management (APM) 1.2
ACPI 1.0b, OnNow, and Energy Starcompliant |
|
keyboard and pointing device |
87-/88-key full-size keyboard
Embedded numeric keypad
12 function [Fn] keys
Dual pointing devices: touch pad and TrackPoint
Center scroll up/down rocker button
Four, one-touch user-programmable quick launch buttons for
instant access to Internet or applications
Suspend/resume sleep button |
|
software |
|
operating system |
Microsoft(R) Windows 2000 |
|
drivers and utilities / pre-installed software |
2000-compatible Plug & Play (including hot docking and hot
swapping of accessory bay modules)
Phoenix BIOS 4.0 release (6.0 code base)
McAfee VirusScan V5.13b
Zone Alarm Firewall (U.S. only)
Adobe(R) Acrobat(R) Reader
System Diagnostics by HP Diagtools 3.01; e-Diagtools for
Windows
BayManager 1.03 hot-swap software (Windows 98 SE only)
Sterling One-Touch applet; Presentation-Ready applet
Touch pad and pointing stick drivers for independent control
of each device
Online users handbook
Instant Support (NA and Europe only)
FoneSync 3.1.57 (U.S. only)
Broadband (U.S. only)
Intervideo WinDVD (not preloadedcomes with DVD models)
Adaptec EasyCD 4.03 (not preloadedcomes with CD-RW optional
module)
Desktop Zoom applet (to resize display view) available on HP
Web site |
|
internet and online |
HP E-center for convenient
access to online services (North America only) |
|
manageability |
|
manageability features |
Desktop Management Interface (DMI) 2.0 compliant
HP TopTools 5.5 for
Windows 98SE/2000 and Windows NT 4.0
ACPI 1.0 |
|
security |
User and administrator passwords
Kensington MicroSaver lock slot
System and hard drive passwords
PC identification displayed at boot
DMI-accessible electronic serial number
Docking password
SmartCard BIOS support |
|
mobility |
|
weight |
5.1lb (2.3kg) - 6.2lb (2.8kg) depending on configuration |
dimen
sions |
12.4 Χ 10.28 Χ 1.26 in (31.5 Χ 26.1 Χ 3.2 cm) with 14.1" display
12.8 Χ 10.38 Χ 1.36 in (32.5 Χ 26.4 Χ 3.5 cm) with 15" display |
|
warranty |
90 day part and labor |
|
support |
Customer Care electronic support available through:
HP Instant Support (Web-based remote diagnostics and automated
resolution)
Component change roadmaps available through HPs Support One
enterprise |
|
