Key Model Specifications IBM Thinkpad R32
 Feature  Slick durable Design

Processor/Speed (MHz)

  Intel Pentium 4 1800 MHZ
 Display  14.1"-inch TFT Active Matrix XGA Display with ATI Mobility

Hard disk size

 30gb =30000mb

Memory (std/max) (MB)

  256 MB , expandable up to 512 MB,

CD-ROM speed

  DVD internal / removable
 Floppy Drive  FDD Drive optional removable
 Fax/Modem Speeds  Modem with 56 K V.90 technology internal
 Multimedia  Sound Blaster compatible stereo sound with two speakers and a built-in microphone, Crystal Sound Fusion WDM Audio
 Other  10/100 Network card internal
 Other  wireless
 Weight  5.9 lbs
 Operating system  Microsoft Windows XP Professional
 Warranty type More info  Grade A Refurbished with 90 Days Warranty Parts & Labor including battery More info
 Options .
 Memory Options More info  Upgrade Memory to 512mb + $49
 CD-RW/DVD Option More info  Upgrade to CD-RW/DVD + $59
 Carry Cases More info  IC Gear Standard Nylon Case + $19
 IC Gear Syntactic Leather Executive Case + $29
 IC Gear Backpack Case + $29


The IBM ThinkPad R32 laptop features the Intel Mobile Pentium 4 1800MHz processor, 256MB of SDRAM memory and a 30gb hard drive. you can also expand the capabilities of R32 by taking advantage of IBM ultra bay 2000 with included DVD Drive, , The IBM ThinkPad R32 also utilizes the ATI Radeon video with 16mb DDR Memory and the 14.1"-inch XGA LCD for clear, crisp and beautiful graphics. The IBM ThinkPad R32 laptop gives you a complete Internet communications solution with the integrated 56k modem and broadband-ready 10/100Mbps NIC, optional internal wireless, and the Microsoft Windows XP Professional operating system. The ThinkPad R32 laptop is a complete and affordable portable solution!

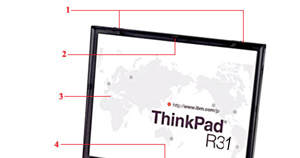

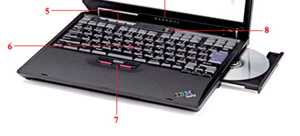

  Front Side View
1. Display Latch :
2. ThinkLight :
3. LCD Display
4. System-status indicators : LED
5. ThinkPad & Volume Buttons : ThinkPad :  On-Line .-Volume Control : Up & Down
6. TrackPoint IV : ThinkPad TrackPoint   Select-to-Select , Release-to-Select
7. Mouse & Scroll Button : 2
8. Power button
 Right Side View
 1. PC Card slot : Type III/II
2. IEEE 1394 port :
3. USB port :
4. Speaker/Headphone jack (Stereo) : 3.5mm
5. Microphone jack : 3.5

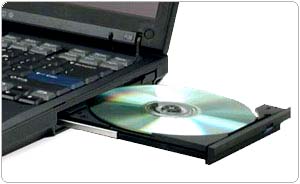

     Left Side View (CDRW/DVD Drive)
 With the Ultrabay 2000, fast and easy hot- and warm-swapping of many components gives you the flexibility to configure the system , Optional UltraBay Plus Numeric Keypad, Optional UltraBay Plus WorkPad Docking
   Rear Side View
 1. Security Lock slot :
2. AC jack :
3. Parallel port :
4. External Display port :
5. RJ-11 Modem port :
6. RJ-45 LAN port :
7. USB port :
8. S-Video out
9. Cooling vent

he ThinkPad(R) R32 laptop computer continues the IBM tradition of innovative desktop alternative notebooks with the addition of integrated communications. With the Ultrabay 2000, you can freely interchange optical devices, mass storage drives, diskette drives, or a second battery. The Ultrabay Plus offers an optional numeric keypad or a WorkPad cradle for synchronizing the ThinkPad with a WorkPad while the WorkPad charges. The communications bay allows up to three types of integrated communications:
  • V.90 modems
  • 10/100 Ethernet LAN

The ThinkPad R32 computer is the ideal mobile solution for a wide variety of user needs.

Outstanding features

  • Powerful Mobile Intel(R) Mobile Pentium(R) 4 Processor-M at 1800 MHz with enhanced Intel SpeedStep(TM) technology and 512 KB on-board L2 cache memory
  • Large, brilliant 14.1"-in active matrix TFT display with XGA (1024 x 768) resolution
  • 30 GB HDD
  • 256 MB of memory, expandable up to 1024 MB
  • Modem with 56 K V.90 technology (V.92 capable), 10/100 Ethernet, DVD, 24x CD drive, or DVD/CDRW combo drive. (Options depending on model)

ThinkPad benefits

  • Desktop expansion with integrated, easy-loading modular Ultrabay(TM) 2000, Ultrabay(TM) Plus, PC card slots, and optional ThinkPad Port Replicator and ThinkPad Dock
  • ThinkPad Button, newly enhanced Access ThinkPad, Access Connections, and ThinkPad access help(TM)
  • ThinkLight(TM) keyboard light
  • Individual volume up, down, and mute buttons
  • TrackPoint(R) with Press-to-Select, Internet scroll, and magnifying glass features for accurate and convenient control
  • New, innovative, easy-to-use Web navigation keys for quick and simple Web browsing (total of eight keys, with three customizable to your needs)

Flexible, innovative design

The ThinkPad R32 laptop computer is an outstanding desktop alternative with ex- ceptional versatility for mobile users who need the flexibility to take work with them. It offers desktop expansion with two modular bays (Ultrabay 2000 and Ultrabay Plus), two PC card slots, and support for both the ThinkPad Port Replicator and the ThinkPad Dock. It features excellent graphics with the ATI Radeon with 16 MB VRAM and a large 14.1"-in active matrix TFT display with XGA (1024 x 768) resolution.

The ThinkPad R32 notebook computer is a mobile solution whose cutting-edge design includes these features:

  • S-Video-out port
  • Stereo audio with 3D sound and speaker technology
  • Dual-mode, high-performance Mobile Intel Pentium III processor-M with enhanced Intel SpeedStep technology

The ThinkPad R31 computer shares many common options across the ThinkPad family:

  • UltraBay 2000 and Ultrabay Plus devices
  • ThinkPad Port Replicator and ThinkPad Dock
  • 72 W power adapter
  • System memory
  • HDDs
  • Mini-PCI options and CDC communications alternatives
  • External battery charger

Innovative ease of use

With its flexible design, the ThinkPad R32 laptops work right out of the box. Productivity and ease of use are enhanced for novices as well as experienced users with ergonomic features that include:

  • ThinkPad button for one-touch access to newly enhanced Access Thinkpad, Access Connections, and ThinkPad access help (requires Internet access account available separately)
  • Internet scroll bar for effortless scrolling through Web pages or large spreadsheets
  • Keyboard with full-size keys, a TrackPoint pointing device, spacious palm rest, sloped design for comfortable typing and the new, easy-to-use Web navigation keys for quick and simple Web browsing (total of eight keys, with three customizable to your needs)

Modular Ultrabay 2000

The easy-loading modular bay allows you to add function with the fast swapping of a variety of devices. Choose any of the standard or optional devices you need:

  • Second battery
  • Second HDD
  • DVD-ROM
  • CD-ROM
  • CD-RW
  • DVD/CD-RW
  • SuperDisk (LS-120)
  • Zip drive 250 MB

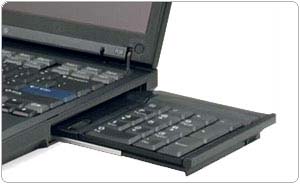

Integrated Ultrabay Plus

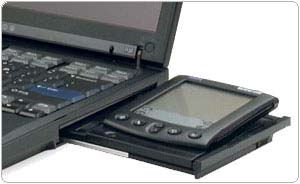

With the Ultrabay Plus you can include an optional numeric keypad or cradle for the WorkPad with charging and synchronization capability. An Ultrabay Plus device carrier is required.

ThinkLight keyboard light

With the ThinkLight you can keep working in low-light conditions and take your work virtually anywhere.

Other freatures

  • Intuitive volume control: Individual volume up, down, and mute but- tons offer easier volume control.
  • RJ-45 and RJ-11 connectors enable modem or LAN support. These connectors are duplicated in the ThinkPad Port Replicator and ThinkPad Dock to enable modem and LAN support without cable or card swapping.

LCD Display

The R31 ThinkPad family includes large 15"-inch active matrix displays with resolution of 1024 x 768. Resolutions are shown in the following tables.

Resolution LCD External monitor (CRT only)
TFT 85hz 75hz 60hz
640 x 480 16M 16M 16M 16M
800 x 600 16M 16M 16M 16M
1024 x 768 16M 16M 16M 16M
1280 x 1024 N/A 16M 16M 16M
1130 x 1200 N/A 16M 16M 16M
2048 x 1536 N/A N/A N/A 64K

Keyboard and TrackPoint with Press-to-Select

The spill-proof key- board with Web-centric keys have the familiar layout of a ThinkPad laptop with function keys that allow quick access to system functions. Use the TrackPoint with Press-to-Select to select objects by pressing the TrackPoint cap.

PCMCIA

The Type III slot can accommodate two Type I or two Type II, or one Type III PC card. Both 16-bit and 32-bit cards are supported.

Communications bay

Mini-PCI and communication cards for integrated network and communications.

PC Card support software

The auto configurator and memory device driver enable supported PCMCIA cards by sensing them automatically. PCMCIA cards supported by the auto configurator and memory device driver are listed in the Sales Manual.

Storage

  • Standard 30  GB

Optional 48 GB HDDs are also available. Two HDDs can be used concurrently to offer expanded storage.

Audio

Excellent sound quality with two stereo speakers, 16-bit stereo audio supporting Sound Blaster Pro, built-in stereo speakers, and volume control.

Three audio jacks:

  • One for external stereo speakers or headphone
  • One for an external microphone
  • One for line-in

Infrared (IR)

IR transceiver for wireless file and data transfer and printing. IBM ThinkPad R32 laptop models are compatible with the Infrared Data Association (IrDA) IR data link specification with speeds up to 4 Mbps.

Other features

Enhanced parallel, S-Video out, external display, pointer-keyboard-keypad, serial, and two USB ports. Additional connector supports the optional Port Replicator and dock.

AC Adapter

This ac-to-dc converter supplies the necessary power to the computer. The ac adapter also charges the battery pack when it is installed in the computer.

Li-Ion Battery Pack

A 6 Cell Li-Ion Battery Pack is shipped with the ThinkPad R32 laptops. The battery pack is an internal power source to the computer when the ac adapters not available.

The battery pack is rechargeable is charged using the ac adapter with the system. The Li-Ion battery approximate operation hours and charging hours are:

Condition IBM ThinkPad R31
Power off/suspend charging** 1.5 to 2.5 hr
Charging during operation** 2.0 to 3.0 hr
Battery operation * 3.2 hr

Protect and maximize your IT investment in the ThinkPad R31 notebook with programs such as:

  • Wake on LAN
  • Alert on LAN
  • UM Services
  • LANClient Control Manager (LCCM)
  • DMI
