| item |
#583
IBM T23 |
| Feature |
Slim
Design, DVD drive |
|
Processor/Speed (MHz) |
Intel
Mobile PIII 1000 MHZ, 133MHz Front Bus, 512kb Cache |
| Display |
14.1-inch TFT Active Matrix
XGA Display,
16mb SGRAM S3 Super Savage Video, 4X AGP |
|
Hard
disk size
|
15GB UltraDMA EIDE =15000mb |
|
Memory (std/max) (MB) |
256 MB
of 133mhz memory, expandable up to 1024 MB |
|
CD-ROM speed |
DVD drive |
| Floppy Drive |
optional |
| Fax/Modem Speeds |
Modem
with 56 K V.90 technology internal |
| Multimedia |
Sound Blaster compatible stereo sound with
two
speakers and a built-in microphone, Crystal Sound Fusion WDM Audio
|
| Other |
10/100
Network card internal |
| Weight |
5.2 lbs |
| Operating system |
Original Factory Load Microsoft
Windows 2000 Professional |
Warranty type
More info
 |
Grade A Refurbished with 90 Days
Warranty
Parts & Labor
including battery
More info
|
|
Options |
|
|
Memory
Options
More info
|
Upgrade
Memory to 512mb + $49 |
|
CD-RW/DVD Option
More info
|
Upgrade
to CD-RW/DVD + $59 |
|
Wireless
Options
More info
|
ADD Wireless PC Card + $19 |
|
Carry
Cases
More info
|
IC
Gear Standard Nylon Case + $19
IC
Gear Syntactic Leather Executive Case + $29 |
|
|
 |
 The
IBM ThinkPad T23
laptop features the Intel Pentium III 1000MHz
processor with 133MHz Front Bus Speed and 4X AGP Support, 256MB of
133MHz memory expandable to 1024MB and a Fast 15GB hard drive.
Watch your favorite movies on the big screen with the
S-Video Out port and the removable DVD drive. The IBM
ThinkPad T23 also utilizes the S3 Super Savage video with the
14.1-inch XGA LCD and massive 16MB SGRAM Video memory for clear, crisp and beautiful graphics.
The IBM ThinkPad T23 laptop gives you a complete Internet
communications solution with the integrated 56k modem and
broadband-ready 10/100Mbps NIC,
and the Microsoft Windows
XP 2000 operating system. The ThinkPad T23
is a complete and affordable portable solution!
The ThinkPad T23 laptop features:
-
Intel(R) Mobile Pentium(R) III processor at
1000 MHz
featuring Intel(R) SpeedStep(TM) technology for both maximum and
battery-optimized performance
-
Sleek profile and light weight
-
Microsoft (R) Windows
(R) XP Professional -
Easy one-button access to information on your
system via portals to the Web with the new ThinkPad button
-
133 MHz front-side
system bus with 133 MHz
memory modules
-
256 MB of memory is standard
(512mb Upgrade Available for $59) -
15.0GB EIDE hard disk
drive (HDD)
-
Integrated Mini-PCI V.90 modem(3) or Intel or
3Com combination V.90 56Kb modem and 10/100 Ethernet LAN connection
-
Brilliant display 358.1-mm (14.1-in) TFT display with 1024 x 768 resolution
-
Enhanced graphics enabling multiple monitor(4)
support
-
DVD drive (CDRW/DVD
option Available for $59) -
Many optional features to enhance flexibility
and function
-
Advanced system manageability
-
S-Video out port (TV out)
|
 Slim
Design
The
IBM ThinkPad T23 laptop is 33.1 mm (1.3 in) thin with optimal travel
configurations weighing 2.1 kg (4.6 lb). Its dimensions
are 304 x 250 mm (20.0 x 9.8 in). The new titanium
composite cover gives you added strength(11).
|
|
|

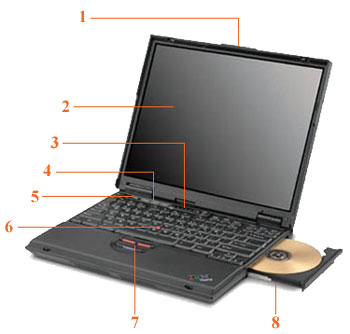

Front
Side View
 |
1. UltraPort Connector :
All ThinkPad T23 laptops come with an UltraPort
connector on the edge of the top panel. This innovative port supports an
optional digital camera and power-management functions required by
Bluetooth(TM) wireless options. The location of the port allows optimal
performance for both applications.
2. Display panel :.XGA 1024X768 Resolution
3. LED Status display .
4. Volume Control : .
5. ThinkPad Buttons :
one-button access to
information you need, along with ThinkPad portals for mobile solutions,
service, support, and more.
6. TrackPoint IV :
7. Mouse & Scroll Button :
Press-to-Select and Release-to-Select features allow tapping of the
TrackPoint pointing device to speed icon launches and reduce keystrokes.
8. UltraBay 2000 : |
|
Right Side View
 |
1. UltraBay 2000
With the Ultrabay 2000, fast and easy hot- and warm-swapping of many
components gives you the flexibility to configure the system. |
|
Left Side View
 |
1. Cooler
2. 2PC Card slots :
3. Infrared
4. Headphone jack :
5. Line in
6. Microphone jack : |
|
Rear
Side View
 |
1. Security Lock slot :
2. S-Video out
3. Serial port
4. Parallel port :
5. External Display port :
6. RJ-11 Modem port :
7. RJ-45 LAN port :
8. AC jack :
9. USB port :
10. PS/2 port : |
|
Latest processor technology
Operating system
Communications
Multimedia
DVD movie playback does
not require complementary graphics hardware on ThinkPad T23 systems that have a DVD drive and
Windows 2000 installed.
LCD TFT display
Video Modes -- T23 (16MB SGRAM)
Laptop internal screen
resolution 1024X768
External resolution
166x1200
Colors 16,000,000
Keyboard and TrackPoint with enhanced features
The keyboard has the familiar layout of a ThinkPad system with function keys
that allow you to quickly access system functions such as power-management
control.
The TrackPoint with enhanced features
incorporates the Press-to-Select and Release-to-Select function.
Just tap the TrackPoint to speed icon launches
and help reduce keystrokes. The new programmable center button enables fast
scrolling of Web sites and documents or fast panning across wide spreadsheets.
Switch to the innovative magnifying glass feature to enlarge screen views in any
application.
Memory
The system has 256 MB of 133MHz memory standard and can be configured for up to
1024 MB
of addressable memory.
PC Card
The Type III slot accommodates either two Type I, | two Type II, or one Type III
PC card. The slot supports CardBus adapters, PC card, and Zoomed Video (ZV)
adapter.
Storage
the customer-removable HDD 20.0 standard.
Drives
a DVD drive is installed in
the system.
An optional SuperDisk (LS120) drive, or a second
HDD in the Ultrabay 2000, expands storage. The second HDD option, requiring an
adapter, can be used with all ThinkPad T23 models. The 1.44 MB diskette
drive (FDD) can be plugged directly into the ThinkPad T23 Ultrabay 2000 or
attached externally for added flexibility by using an optional adapter and cable
available at ordering
Audio
Full-duplex audio on the system board and the integrated microphone allow
voice annotation and audio. The system is equipped with audio in/out jacks for
stereo speakers, headphone, or external microphone. The system supports Sound
Blaster audio applications.
Video
Models with Windows 98 Second Edition support a system display and an external
monitor simultaneously while different applications are on each screen. Move the cursor from one screen to the other
and drag and drop items from the application on one screen to the application on
the second screen.
Infrared
The system has one fast IR transceiver (up to 4 Mbps) for wireless file and data
transfer and printing. The ThinkPad T23 is designed for compliance with the
Infrared Data Association (IrDA) IR data link specification Version 1.1.
Other features
The ThinkPad T23 systems include these ports:
The USB port, which connects external drives and
other devices, is supported by Microsoft Windows 2000 Professional, Windows 98,
Windows 98 Second Edition, or Windows 95
OSR2.1, or later. Video out port (TV out) is standard.
The 240-pin connector supports these optional
docking solutions:
|
 |
|
internal CDRW/DVD for
only $59.00 |
Play DVD Movies and Record your own
CD's (music, data or video cd) with the optional CDRW/DVD Combo
drive ( the optional High speed CDRW/DVD now available for $59)
When you order your IBM Thinkpad T23 laptop
With the CDRW/DVD upgrade, we will
install the CDRW Drive along with extra utilities and software for
all CD burning need, We also test the upgrade before we ship your
order, this will not delay the shipping of your order |
|
 |
|
Upgrade Memory to 512mb for $49.00 |
Your
IBM Thinkpad T23 laptop come with
ample amount of memory for everyday applications, however customers
with more demanding use can Double the amount of memory to 512mb for
$49.
When you order your
IBM Thinkpad T23 With the 512mb memory upgrade, we will
install and test the memory upgrade before we ship your
order, this will not delay the shipping of your order. |
|
 |
|
Add a Port Replicator for
only $29.00 |
The new ThinkPad Port Replicator provides easy cable management and
ThinkPad port pass-through capability with one easy snap for
ThinkPad A, X and T Series users. You can reduce the inconvenience
of individually connecting to multiple devices, and get true desktop
like convenience. The ThinkPad Port Replicator offers pass-through
connection to RJ11, RJ45, serial, parallel, keyboard, mouse, floppy
disk drive, monitor, USB, DVI, line-in, line-out, and place for
optional cable lock.
This convenient and efficient
Port Replicator gives you the best of both worlds. You maintain the
mobility afforded by your ThinkPad notebook while allowing quick and
easy access to desktop peripherals at the office. The cable locking
feature provides an added security benefit by allowing users to lock
both the ThinkPad Port and ThinkPad system.
Weight
1.3 lbs,
Height
1.8 inches,
Width
10.6 inches,
Depth
3.6 inches |
|
 |
 |
|
IC Gear Standard Nylon Carry Case
for $19.00 |
Soft Polyester, outer shell,
Front compartment for accessories,
Mid compartment for documents and laptop
computer,
Extra zipper enclosed compartment,
Expandable!
Dimensions: L39 x W29 x H15 (cm |
 |
|
IC
Gear executive Coskin Carry Case
for $29.00 |
Durable coskin casing, Matte silver
detailing, Front compartment for accessories, Mid compartment for
documents & laptop computer, Adjustable shoulder strap
Dimensions: L39 x W29 x H15 (cm)
|
|
 |
 This
item is entitled to our %100 Satisfaction Guaranteed
We recognize that ordering refurbished laptops on the Web, requires
trust. If you've ever bought laptops from us, you know firsthand how
tough our standards are. By enforcing strict quality guidelines, we can
guarantee that every laptop we sell, new or refurbished, is a good
purchase. If you're not satisfied, simply return the laptop in its
original condition within 3 days of receipt, and we'll credit your
account for the full amount of the laptop. (excluding shipping and
handling).
100% satisfaction is our goal: ordering, shipping, customer service and
selection. If you are unhappy with your purchase for any reason, please
contact us immediately. We will do everything we can to make things
right or your money back no questions asked.
|
|
|
 |
The
IBM Thinkpad T23 laptop is entitled to laptopcloseout 90 days full warranty, this warranty
is valid and starts as of the day you receive your laptop, this is a
full warranty meaning it includes all hardware parts of the unit
including battery**, in event of experiencing any hardware problem
customers can call our toll free tech support line (1-800-473-7991) |
|
|
 |
 |
|
The
IBM Thinkpad T23 laptop is entitled to laptopcloseout 90 days
technical support, customers with difficulties or
questions regarding hardware operation of the laptop can
email tech support
support@laptopcloseout.com or call toll free at
1-800-473-7991, tech support is available 6 days a week
within business hours. |
|
|
|
|
| Period: |
90
days (as of date received) |
| Type: |
Parts and labor, back
to depot for repair or replacement |
| Includes: |
All hardware
components including battery |
| Battery: |
Tested for
minimum half hour run time when fully charges
(with all power management features off) Note:
Omni Systems does not test batteries for maximum
run time |
| Cosmetics: |
Refurbished
Grade A: No major cosmetic defects are allowed |
| Returns: |
Return for full
refund (excluding shipping costs) available
within two business days after date received
(requires contact with omni systems for RMA No)
Return for full refund (excluding shipping costs
and %15 restocking fee) available within 30 calendar
days after date received (requires contact with
omni systems for RMA No) |
- Hardware:
warranty covers all hardware for
the warranty period (for warranty issues on batteries please refer below), warranty covers repair or replacement of defective products only.
To ensure you do not receive any
defective products All hardware is tested 3 times in separate testing
process before shipment. however if you receive a DOA Product (defective on
arrival) or missing Items, we will pay for all shipping cost for quick
repair or replacement.
customers with defective hardware products within their warranty period should contact support to verify and obtain a RMA No. -
Software:
To ensure all hardware
function properly we also make sure the software that runs/operates the hardware also function properly therefore when you receive your order all operating software
should also be functioning properly - Laptop Batteries: unlike most other companies who do not provide warranty on laptop Batteries (which can be very expensive) we not only provide working batteries with all laptops, we also provide warranty on the batteries itself, all laptop batteries are tested warranted to hold charge for minimum 30 minutes when fully charge
- Contact: For warranty and support information, please phone at 416-816-3235 or e-mail Support@laptopcloseout.com
- Technical Support: Please phone Tech Support at 416-816-3235 or e-mail Support@laptopcloseout.com
- Additional Information: Warranty does not cover misuse or mishandling of equipment and user-installed parts & upgrades. Shortages, missing or damaged items must be reported to Omni Systems within 2 days of receipt. All returns must have RMA# by OMNI SYSTEMS prior to shipping/returns.
Purchaser is liable for one way shipping costs (after DOA period), for all
merchandise returned to OMNI SYSTEMS for exchange or warranty repairs
|
|
|
|
