IBM Thinkpad T40 refurbihed used laptop

Key Model Specifications Thinkpad X31 cheap laptop
 item  X31-0-06D Thinkpad X31
 IBM ThinkPad X31 Feature  Ultra light small Design

Processor/Speed (MHz)

  Intel Pentium M Centrino 1400 MHZ, 400mhz bus
 Display  12.1-inch TFT Active Matrix XGA Display, Intel Extreme Graphics 2  Video

Hard disk size

 40GB UltraDMA EIDE =40000mb

Memory (std/max) (MB)

  768 MB of 266mhz memory, expandable up to 1500 MB

CD-ROM speed

  external slim CDRW/DVD
 Floppy Drive  optional
 Fax/Modem Speeds  Modem with 56 K V.90 technology and 10/100 Network card internal
 Multimedia  Sound Blaster compatible stereo sound with two speakers and a built-in microphone
 Other  internal wireless, 2X USB 2.0
 Weight  2.7 lbs
 Operating system  Microsoft Windows XP Professional
 Class  Grade A Refurbished
x Warranty type More info  3 months warranty
 Options .
 Carry Cases More info  IC Gear Standard Nylon Case + $29
 Floppy option More info  USB external Floppy drive + $29

  • Intel(R) Mobile Pentium(R) M centrino technology processor at 1400 MHz featuring Intel(R) SpeedStep(TM) technology for both maximum and battery-optimized performance

  • Ultra small and Slim 1inch thin profile and light weight 2.7 lb.

  • Microsoft Windows XP Professional

  • Easy one-button access to information on your system via portals to the Web with the new ThinkPad button

  • 400 MHz front-side system bus with 266 MHz memory modules

  • 768 MB of DDR memory is standard

  • 40.0GB EIDE hard disk drive (HDD)

  • Integrated Mini-PCI V.90 modem and 10/100 Ethernet LAN connection

  • internal Wireless G

  • external slim cdrw/dvd included

  • Brilliant display 12.1 TFT display with 1024 x 768 resolution

  • Enhanced graphics enabling multiple monitor(4) support

  • Many optional features to enhance flexibility and function

  • Advanced system manageability

  • USB2.0
Processor
Performance: abound in highly portable ThinkPad X Series notebooks, which start at about 1" thin and have a travel weight starting at only 2.7 lb. new ThinkPad X31 models offer 12.1" TFT displays that are ideal for viewing spreadsheets, presentations, Web pages and more and are still only 1" thin. They offer one of the latest Intel® Pentium® M processors
Helpcenter
IBM Service and Support is always there for you. A range of award-winning Service and Support solutions is available in 164 countries, including Access IBM with unique self-help tools for 24/7 online support, as well as on-system support.
Security The Embedded Security Subsystem lets you "lock" your data, helping to provide user authentication, data protection and more secure wired and wireless communications, this hardware-and-software combination creates the most secure industry-standard PC, providing a level of security not available as a standard feature from any other manufacturer
F11
Rescue and Recovery software (preloaded on select models) provides a one-button recovery solution that lets you restore your previously saved system image including data, applications and operating system. It also includes a set of self recovery tools to help users diagnose, get help and recover from a software crash, even if the primary operating system will not boot.
Active Protection System
Active Protection System provides unique data protection. Using an integrated, user-configurable motion sensor, it safeguards your valuable data by continuously monitoring your ThinkPad notebook and temporarily stopping the hard drive to help prevent some hard drive crashes when a fall or similar event is detected — providing up to four times greater impact protection than systems without this feature.
Easier computing
Easier computing: Focus on the task at hand
ThinkPad notebooks offer the TrackPoint® pointing device, ThinkPad keyboard lets users work with standard-sized keys and the TrackPoint center button allows users to move in any direction. The full-screen magnifier on ThinkPad notebook screens gives users the ability to easily see small fonts and details.
Ethernet
High-speed Gigabit Ethernet connectivity is featured on select ThinkPad X Series notebooks. The Gigabit Ethernet standard provides speeds up to 10 times faster than existing 10/100 Ethernet technology, helping to transfer information quickly and increase productivity.
Connection ports
Optimized for connectivity, select ThinkPad X Series notebooks feature up to five built-in communications capabilities: Wi-Fi wireless, Ethernet, 56K V.92 modem and Infrared port. RJ-45 and RJ-11 ports are standard on all models.
Wireless networking
High-performance wireless networking  Other ThinkPad X Series models offer a variety of integrated Wi-Fi wireless solutions. Wi-Fi wireless upgradable models are also available, allowing you to experience the freedom of wireless networking when you're ready using one of the new optional Wi-Fi adapters. X31 notebooks  are rigorously tested by a Cisco Systems®-authorized test facility to verify they'll work with appropriate Cisco products. The Cisco Compatible Extensions (CCX) Program for wireless LAN devices provides proven compatibility with key security features of Cisco infrastructure products
Meets people's needs
Meets people's needs: Your wants, needs and frustrations
ThinkPad notebooks offer a long battery life allowing users to work anywhere; Battery MaxiMiser software that prevents interruptions due to "sleep" mode during presentations, and thin and light notebooks ease the burden of taking your notebook home with you.
UltraConnect antenna
UltraConnect antenna — just one of the wireless performance features on ThinkPad X Series notebooks — is built into the display cover for optimal signal reception. This combined design supports 802.11G wireless to help maximize coverage and performance for improved wireless LAN connectivity around the world.
ThinkLight  ThinkLight keyboard light allows you to work in low-light conditions. Located on the top edge of the display, this tiny LED illuminates your keyboard to let you keep working. ThinkPad notebooks are the only notebook family with the ThinkLight keyboard light .

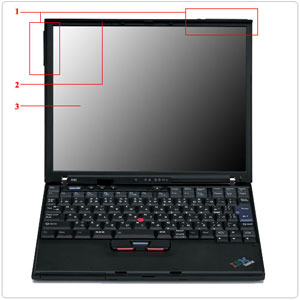

 Front Side View
      right side view
1-Wireless LAN antennas
dual diversity antenna system built into the display for optimal reception, enabling wireless communication wherever you are.
2-Thinklight: Use the ThinkPad computer under less than perfect lighting conditions. The ThinkLight device illuminates the keyboard.
3-Computer display: The high-resolution, thin-film transistor (TFT) display provides clear and brilliant text and graphics.

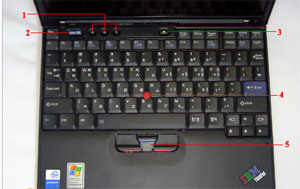

 Top Side View
          t40 left side view
1-Volume control buttons: quickly adjust the volume or mute the sound from your ThinkPad computer.
2-Access IBM button: Press the Access IBM button to open the ThinkVantage Productivity Center,
3-Power switch: The power switch can also be programmed to shut down the computer or put it into standby, sleep, or hibernation.
4-TrackPoint stick: The keyboard contains the unique TrackPoint cursor-pointing device. Pointing, selecting, and dragging are all part of a single process that you can perform without moving your fingers from typing position.
5-TrackPoint buttons

 Left Side View
          t40 left side view
1-Fan louvers: The internal fan and louvers enable air to circulate in the computer and cool the central processor.
2-Microphone jack: Capture sound by connecting an external audio device (microphone) to the microphone jack.
3-headphone jack : Experience sounds by connecting a headphone or speakers to the headphone jack.
4- Line in jack:
5-Security card slot
6-PC Card slots: In the two PC Card slots, you can insert numerous PC Cards, such as modem, data storage, network, and SCSI connector cards.
7-Fire wire port
8-Infrared port: The infrared port enables the computer to communicate with other devices that have infrared data-transfer capability, such as some personal digital assistants (PDAs) and mobile computers.
9-Wireless LAN antennas
dual diversity antenna system built into the display for optimal reception, enabling wireless communication wherever you are.
 Right Side View

front view
1-Wireless LAN antennas
dual diversity antenna system built into the display for optimal reception, enabling wireless communication wherever you are.
2-Hard drive housing
: Capture sound by connecting an external audio device (microphone) to the microphone jack.
3-Fan louvers: The internal fan and louvers enable air to circulate in the computer and cool the central processor.
4-Powerd USB 2.0 connectors: The Universal Serial Bus (USB) connectors are used for connecting USB interface-compatible devices, such as a printer or digital camera, USB 2.0 is 40x faster then conventional USB
5-Security keyhole:The ThinkPad computer comes with a security keyhole. You can purchase a security cable and lock to fit this keyhole.

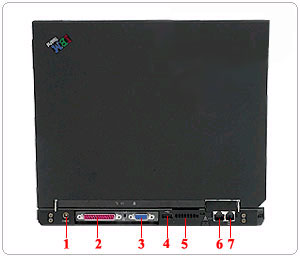

 Rear Side View


t40 bottom view
1-Power jack: The ac adapter cable connects to the computer power jack to provide power to the computer and charge the battery.
2-Printer port
3-External monitor Port
4-Powerd USB 2.0 connectors: The Universal Serial Bus (USB) connectors are used for connecting USB interface-compatible devices, such as a printer or digital camera, USB 2.0 is 40x faster then conventional USB
5-Fan louvers: The internal fan and louvers enable air to circulate in the computer and cool the central processor.
6-Ethernet connector: Connect your computer to a LAN with the Ethernet connector.
8-Modem connector: Connect your computer to a telephone line with the modem connector.

 external CDRW/DVD

A must have for the ThinkPad X Series notebook user. The IBM USB 2.0 CD-RW/DVD-ROM Drive combines all of the advantages of a DVD-ROM, CD-RW and CD-ROM into a single drive by allowing you to read DVD and CD media and create custom data CD's. This portable, super slim and lightweight clamshell design drive allows you to install or run software, listen to music, watch DVD movies and it is perfect for creating CD media for storing data or for sharing information with others.
Dimensions
Height 1.8 cm
Width 13 cm
Depth 15.5 cm
Weight 0.31 kg

Features and specifications
Processor Low Voltage Intel Mobile Pentium M at 1.4GHz
Memory 768MB and supports up to 1.5GB maximum memory
Hard drive 40GB sizes
Display 12.1" TFT display
Graphics Intel Extreme Graphics II
CD and DVD drive Available only in docking station, USB, or Ultrabase slot
Networking Integrated 802.11bg, or 802.11abg wireless (select models)
Security Security chip
Battery Lithium Ion in 4 cell and 8 cell configurations
Operating System Microsoft Windows XP Pro
ThinkVantage Technologies ThinkVantage Technologies help customers become more competitive by delivering industry-leading capabilities that improve productivity and reduce cost. ThinkVantage Technologies include features such as deployment, backup, security and more.

Architecture
Audio
  • Chipset is AD1981B
  • One 0.5W internal speaker (mono)
  • 16-bit and 8-bit stereo playback and recording
  • Sound Blaster compatible
  • DirectSound 3D positional audio
  • Volume up, down, and mute buttons
  • Three 1/8" audio jacks:
    • One for external stereo speakers or headphone
    • One for an external microphone
    • One for line-in
Keyboard
  • 85 SBCS key keyboard with imbedded numeric keypad and integrated TrackPoint(TM) with enhanced features
  • Imbedded numeric keypad
  • The keyboard has a Fn key which is a special key and is located in the lower left corner. The Fn key allows the user to instantly activate the following operational features by pressing the Fn key and a designated function key: - Standby/Suspend/Hibernation - Switching between Display devices - Power management mode
  • Access IBM button, allowing one-touch entry into Access IBM
  • ThinkLight which illuminates the keyboard in low light conditions
Memory
  • Uses DDR PC-2100 or 2700 2.5V SO-DIMM memory, no support for parity/ECC
  • 256MB or 512MB RAM on the system board
  • 1 memory slot for expansion which supports up to one 1024MB SO-DIMM
  • Supports maximum memory up to 1280MB for systems with 256MB onboard or 1536MB for systems with 512MB onboard
Mouse
  • TrackPoint with Press-to-Select, Internet scroll, and magnifying glass features for accurate and convenient control
Processor
  • Low Voltage Intel mobile Pentium M processor 1.4GHz
  • 1024 KB onboard L2 cache memory



Communications
Infared (IR)
  • IR transceiver for wireless file and data transfer and printing.
  • Speeds up to 4 Mbps.
Modem
  • 56K v.92
  • Available as either a single CDC card or in combination with the Bluetooth CDC card
Network
  • Ethernet
    • 10/100 Ethernet or 1Gb Ethernet soldered on system board

    • Option part numbers for network cards
  • Wireless
    • 802.11a/b/g wireless, (depending on model) available as Mini PCI cards



Expansion
Bays
  • One Mini PCI type III slot
  • One Communications Daughter Card slot
  • Ultrabay slim is available via the ThinkPad X4 UltraBase
External ports
  • Two USB (One on the right side, one on the left side) version 2.0
  • One Ethernet RJ-45 with 2 LEDs
  • One RJ11 for modem enabled systems
  • One DB-15 external display
  • Docking connector supports the optional ThinkPad X4 UltraBase, or the optional ThinkPad X31 Series Extended Life battery only.
  • Audio line out and microphone in ports
PC Card
  • Conforms to the PC Card Standard 95
  • The Type II slot can accommodate one Type I or one Type II
  • Both 16-bit and 32-bit cards are supported.
  • PCMCIA 2.1 standard



Operating environment
Physical specificaitons
System:
  • Width: 268mm (10.5in)
  • Depth:
    • 211mm (8.3in) with 4 cell battery
    • 236.8mm (9.32in) with 8 cell battery
  • Height:
    • Minimum: 20.6mm (0.81in)
    • Maximum: 26.9mm (1.06in)
  • Weight:
    • Minimum: 1.23kg (2.7lb)
    • Maximum: 1.47kg (3.2lb)
Note: All dimensions are approximate.

Power
AC Adapter
  • AC adapter: This ac-to-dc converter supplies the necessary power to the computer. The ac adapter also charges the battery pack when it is installed in the computer.
  • Universal AC adapter (56 W):
    • Input is 100/240 V ac, 1.2/0.7 A, 50/60 Hz
    • Output is 16 V dc, 3.5 A
Battery
  • The battery pack is an internal power source to the computer when the ac adapter is not available. The battery pack is rechargeable and is charged using the ac adapter with the system.
  • Four cell Li-Ion battery pack: 200g (0.44lb)
  • Eight cell Li-Ion battery pack: 400g (0.88lb)
  • Li-Ion battery pack:
    • 14.4V, 1.9Ah, 4 cell battery
    • 14.4V, 4.2Ah, 8 cell battery
  • Approximate operation and charging hours are:
    • Power off/suspend charging**:
      • 3.5hr, 4 cell battery
      • 4.3hr, 8 cell battery
    • Charging during operation **
      • 3.5 hours minimum, 4 cell battery
      • 4.3 hours minimum, 8 cell battery
      • 4.0 hours typically, 4 cell battery
      • 5 hours typically, 8 cell battery
      • 6.0 hours maximum, 4 cell battery
      • 12 hours maximum, 8 cell battery
    • Battery operation:
      • Up to 3.5hr *, 4 cell battery
      • Up to 7.5hr *, 8 cell battery



Security
System
  • Security Chip (TCPA/Crypto 3) on selected models
  • Locking device in the security slot provides physical security.
Password
  • A Power-on password (POP) protects the system from unauthorized
    use. If a POP is set, the password prompt appears:
    • Each time the system is turned on
    • When the system is returned to normal operation from suspend mode
  • A Supervisor Password provides a higher level of security than the POP. The Supervisor Password protects the system functions from being used by unauthorized users, and protects the hardware configuration from unauthorized modification.
  • A HDD Password (HDP) protects HDDdata from unauthorized users. Once HDP is set, data on the HDD cannot be accessed without the correct HDP. Because the HDP is stored in the HDD, the data remains protected even if the HDD is removed to another system. The HDP password prompt appears:
    • Each time the system is turned on



Software
Operating system
  • Microsoft Windows XP Professional


Storage
Optical drive
  • Available via USB or X4 UltraBase Ultrabay slim slot
Floppy drive
  • Available via USB or X4 UltraBase Ultrabay slim slot
Hard disk drive (HDD) features
  • Standard with 40GB
  • Supports one additional HDDs which can be used concurrently to offer expanded storage
  • S.M.A.R.T. technology to issue an alert if a hardware failure is pending
  • ATA Bus Interface
  • 5400 rpm
  • Hard disk drive installation and removal instructions
  • Although you can upgrade the HDD, it is not designed to be removed and reinserted on a regular basis. Repeated and frequent removal, for purposes other than to upgrade for greater capacity, can cause damage to the system. The Ultrabay slim HDD adapter is designed to provide this flexibility with a second HDD in the Ultrabay slim in the X4 UltraBase



Video
Display
Large, brilliant 12.1-in XGA (1024 x 768) active matrix TFT display
Graphic Controller
Video chipsets:
  • Intel Extreme Graphics 2
  • 32MB or 64MB of system memory
16MB ATI Mobility RADEON
Resolution LCD Color depth
640x480 256, 64k, 16M
800x600 256, 64k, 16M
1024x768 256, 64k, 16M
1280x1024 256*1, 64k*1, 16M*1
1600x1200 256*1, 64k*1, 16M*1
2048x1536 256*1*2, 64k*1*2, 16M*1*2


Resolution Supported refresh rates in Hz for external monitors
640x480 60, 72, 75, 85, 100, 120 Hz
800x600 60, 72, 75, 85, 100, 120 Hz
1024x768 60, 70, 75, 85, 100, 120 Hz
1280x1024 60, 75, 85, 100, 120 Hz
1600x1200 60, 75, 85, 100, 120Hz
2048x1536 60*2, 75*2 Hz
Notes:
*1 Supported in panning mode.
*2 This video mode is not supported on Windows NT4. It is supported only on Windows 2000, XP Home, and XP Professional.
*3 Supported at external monitor only. When the LCD and external monitor are used at the same time, the refresh rate may be lower.





Top

Add a Floppy Drive for $29.00

Your IBM Thinkpad can be ordered with an external USB Floppy Disk Drive or Ultra bay 2000 internal swappable Floppy drive
 ADD a USB Floppy Drive + $29



IC Gear/Manhattan Standard Nylon Carry Case for $19.00

Soft Polyester, outer shell, Front compartment for accessories, Mid compartment for documents and laptop computer, Extra zipper enclosed compartment, Expandable!
Dimensions: L39 x W29 x H15 (cm

Top
This item is entitled to our %100 Satisfaction Guaranteed

We recognize that ordering laptops on the Web, requires trust. If you've ever bought laptops from us, you know firsthand how tough our standards are. By enforcing strict quality guidelines, we can guarantee that every laptop we sell, new or refurbished, is a good purchase. If you're not satisfied, simply return the laptop in its original condition within 3 days of receipt, and we'll credit your account for the full amount of the laptop. (excluding shipping and handling).

100% satisfaction is our goal: ordering, shipping, customer service and selection. If you are unhappy with your purchase for any reason, please contact us immediately. We will do everything we can to make things right or your money back no questions asked.

Warranty Details
Period: 3 months
Type: 3 months parts and labor
Includes: All hardware components including battery
Battery: good working condition
Cosmetics: grade A refurbished
