T4020D
Advanced Tablet Technology |
|
|
|
|
|
|
|

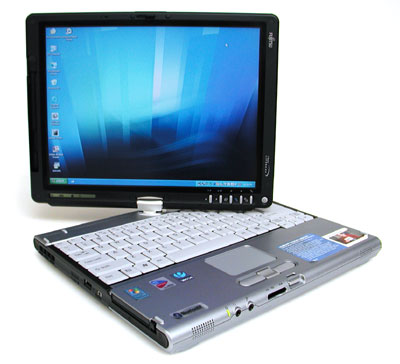

Fujitsu Lifebook®
ST5020D Tablet PC, the latest evolution
in Tablet PC technology, delivers superior
levels of productivity and performance. This
innovative system, based on over a decade of
design, engineering, and manufacturing
expertise, improves your business productivity
with proven quality and reliability from the
leader in pen computing.
Take this convertible for a ride
- put the top down and use digital ink to take
unobtrusive handwritten notes and draw diagrams
during meetings and seminars, or write directly
onto slides for emphasis during your
presentation. Put the top up when you use your
notes, drawings, and annotated graphics in a
formal report. The LifeBook T4020D Tablet PC
provides the full power, functionality, and
familiarity of a notebook yet offers versatile
digital inking capabilities.
Features:
-
Intel Pentium M Processor
with Centrino technology
-
Tablet PC and
conventional tablet in all in one design
-
Active digitizer with
multifunction pen, which supports Microsoft
Windows XP Tablet PC Edition 2005
-
Bright 12.1" XGA indoor
display (with 160º wide viewing
angles)
-
Wireless Super
AG™(802.11a+b/g) wireless LAN
-
Innovative one-touch
application buttons including one step
display mode rotation
-
Thin and light
Convertible form
factor with extended battery life
-
Built in CDRW/DVD optical
drive
-
Innovative Tablet Dock
solution
|
|
|
|
Fujitsu Life book Side Views |
|
|
|
|
|
|
|
|
Fujitsu
Front View |
|
shown: |
|
|
|
|
 |
|
|
 |
|
 |
|
| |
|
|
| |
|
|
|
|
|
|
Fujitsu
Right View |
|
shown: |
|
|
|
|
 |
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fujitsu Lifebook T4020D Detail Specifications |
|
|
|
General
- Built-in Devices Stereo speakers , Wireless LAN antenna
- Width 11.5 in
- Depth 9.3 in
- Height 1.4 in
- Weight 4.4 lbs
- Notebook type Tablet
Processor
- Processor Intel Pentium M 740 / 1.73 GHz
- Data bus speed 533.0 MHz
- Processor features Enhanced SpeedStep technology , Power-optimized processor system bus , Execute Disable Bit capability
- Chipset type Mobile Intel 915GM Express
Cache Memory
- Type L2 cache
- Cache size 2.0 MB
RAM
- Installed Size 512.0 MB / 2.0 GB (max)
- Technology DDR2 SDRAM - 533.0 MHz
- RAM form factor SO DIMM 200-pin
Environmental Parameters
- Min Operating Temperature 41.0 °F
- Max Operating Temperature 95.0 °F
- Humidity Range Operating 20 - 85%
Storage Controller
- Storage controller type Serial ATA
Storage
- Floppy Drive None
- Hard Drive 60.0 GB - 5400.0 rpm
- Storage Removable None
Optical Storage
- Type CD-RW / DVD-ROM combo - Integrated
Optical Storage (2nd)
- 2nd optical storage type None
Card Reader
- Card reader type Card reader
- Supported flash memory cards SD Memory Card , Memory Stick Pro , Memory Stick
Display
- Display Type 12.1 in TFT active matrix
- Max Resolution 1024 x 768 ( XGA )
- Widescreen Display No
- Color Support 24-bit (16.7 million colors)
Video
- Graphics Processor / Vendor Intel GMA 900
- Video Memory Dynamic Video Memory Technology 3.0
Audio
- Audio output type Sound card
- Audio codec STAC9753A
- Audio output compliant standards AC '97
- Audio Input Microphone
Input Device(s)
- Input device type Touchpad , Keyboard , Digitizer , Digital pen
Telecom
- Modem Fax / modem
- Max transfer rate 56.0 Kbps
- Protocols & Specifications ITU V.90
Networking
- Networking Network adapter
- Networking / Wireless LAN Supported Yes
- Data link protocol IEEE 802.11g , IEEE 802.11b , Ethernet , Gigabit Ethernet , IEEE 802.11a , Fast Ethernet
- Networking standards IEEE 802.11b , IEEE 802.11g , Wi-Fi CERTIFIED , IEEE 802.11a
Expansion / Connectivity
- Expansion Bays 1.0 x Front accessible
- Expansion Slots Total (Free) 1.0 ( 1.0 ) x Smart Card - SO DIMM 200-pin , 1.0 ( 1.0 ) x Memory - Type II , 1.0 ( 1.0 ) x SD Memory Card , 2.0 CardBus
- Interfaces 1.0 x Display / video - Ethernet 10Base-T/100Base-TX/1000Base-T - IrDA , 1.0 x Headphones - Phone line - Mini-phone 3.5 mm , 1.0 x Microphone - VGA - RJ-11 , 1.0 x Modem - Input - 15 pin HD D-Sub (HD-15) , 1.0 x Network - Output - RJ-45 , 2.0 x Hi-Speed USB - 4 pin USB Type A , 1.0 x Infrared - Mini-phone stereo 3.5 mm , 1.0 x IEEE 1394 (FireWire) , 1.0 x Docking / port replicator
Miscellaneous
- Features Trusted Platform Module (TPM) , Security lock slot (cable lock sold separately)
- Compliant Standards ICES-003 , FCC Part 15 C , FCC Part 15 B , TUV , EN55024 , EN 300.328 , FCC Part 15.247 , RSS-210 , FCC Part 68 , IC CS-03 , CUL , EN 301.489.17 , UL 1950 Third Edition , EN55022 Class B , EN 60950 , UL
Power
- Power device form factor External
- Voltage Required AC 120/230 V
Battery
- Technology 6-cell Lithium ion
- Installed Qty 1.0 / 2.0 (max)
- Battery capacity 5200.0 mAh
- Mfr estimated battery life 5.3 hour(s)
Operating System / Software
- OS Provided Microsoft Windows XP Tablet PC Edition 2005
- Software Sonic RecordNow! , Fujitsu HotKey Utility , Fujitsu Display Controls , Microsoft Office OneNote 2003 , Softex OmniPass , InterVideo WinDVD , Fujitsu Driver Update Utility , Adobe Reader
|
|
|
|
|
|
 |
