Overview
|

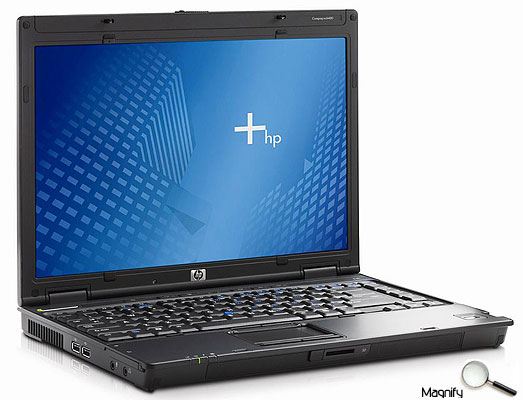

HP Compaq nc6400 Notebook PC |
| |
|
|
|
| |
|
|
|

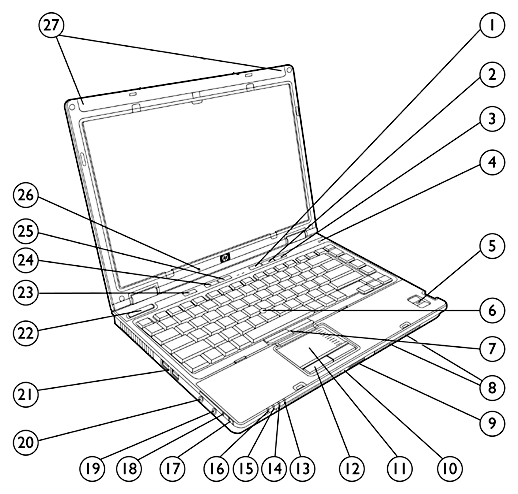

| 1. |
Volume Mute Button
with LED |
15.
|
Power/Standby LED |
| 2. |
Volume Down Button |
16.
|
Wireless On/Off
LED |
| 3. |
Volume Up Button |
17. |
PC Card Eject
Button |
| 4. |
Integrated
Microphone |
18. |
PC Card Slot |
| 5.
|
Biometric
Fingerprint Sensor |
19.
|
Headphone Jack |
| 6.
|
Pointstick |
20.
|
Microphone Jack |
| 7.
|
Pointstick Buttons |
21.
|
2 USB 2.0 Ports |
| 8.
|
Stereo Speakers |
22.
|
Power Button with
LED |
| 9.
|
SD Media Slot |
23. |
HP Info Centre
Button |
| 10. |
Fast Infrared Port |
24. |
Wireless On/Off
Button with LED |
| 11. |
Touchpad with
scroll zone |
25. |
Presentation Mode
Button |
| 12. |
Touchpad Buttons |
26. |
Ambient Light
Sensor |
| 13. |
Hard Drive
Activity LED |
27. |
Dual-band Wireless
LAN Antennas |
| 14. |
Battery Charging
LED |
28. |
5-Band Wireless
WAN Antennas (enabled with WWAN option) |
| |
|
|

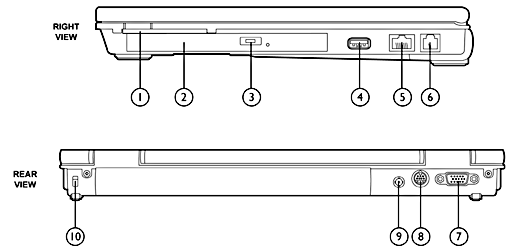

| 1. |
Integrated Smart
Card Reader |
6. |
RJ-11 Port (Modem) |
| 2. |
MultiBay II Drive
with Easy Release |
7. |
VGA/External
Monitor Port |
| 3. |
Optical Drive
Button |
8. |
S-Video TV Out |
| 4. |
USB 2.0 Port |
9. |
Power Connector |
| 5. |
RJ-45 Port (NIC)
|
10. |
Kensington Lock
Slot |
| |
| At A Glance |
- Genuine Windows Vista Business 32,
Genuine Windows Vista Home Basic 32,
Genuine Windows XP Professional,
Genuine Windows XP Home Edition, or
FreeDOS
- Sleek light-weight design starting at under 4.6 lb (2.1
kg) and 1.1 inch (29.2 mm) thin at front
- 14.1-inch wide screen display
- Intel® Core™ 2 Duo processors and Intel Core Duo
processors
- Mobile Intel 945GM Express Chipset or Mobil Intel 945PM
Express Chipset
- Up to 4GB* of 533- or 667-MHz DDR2 SDRAM, dual channel
memory support
- ATI Mobility Radeon X1300 or Intel Graphics Media
Accelerator 950
- Up to 100-GB 7200 rpm, user-removable hard drive
- Optional integrated HP ev2200 1xEV-DO or HP hs2300 HSDPA
Broadband Wireless module
- Optional integrated 802.11 a/b/g or 802.11 b/g wireless
LAN module and Bluetooth®
- Support for optional Intel Centrino™ Duo mobile
technology
- Protected by three-year standard parts and labour
warranty – certain restrictions and exclusions apply
* Above 3-GB, all memory may not be
available due to system resource requirements. |
Standard Features
|
Processors |
| Intel Core 2 Duo
Processor T5600 (1.83-GHz, 667-FSB, 2-MB L2 cache)* |
|
| Operating
System |
Preinstalled |
Genuine Windows XP
Professional SP2 |
| |
Supported
(select drivers available on
http://www.hp.com) |
Genuine Windows
Vista Business 64*†
Genuine Windows Vista Enterprise*†
Genuine Windows 2000 |
| |
Certified |
SUSE Linux
Enterprise Desktop 10
|
|
| Chipset |
Mobile Intel 945GM
Express Chipset with 667-MHz front side bus (models with
integrated graphics) |
|
|
Graphics |
For integrated
graphics models:
Intel Graphics Media Accelerator 950 with up to 224MB shared
system memory,
depending on model
Microsoft DirectX 9 capable |
|
|
Display |
Internal |
14.1-inch WXGA
(1280 x 800 resolution)
Ambient Light Sensor |
| External |
Up to 32-bit per
pixel colour depth
VGA port supports resolutions up to 2048 x 1536 at 75 Hz,
and lower resolutions at up to 100 Hz
DVI port in optional HP Docking Station (sold separately)
supports resolutions up to 1600 x 1200 at both full and reduced
blanking, and 1920 x 1200 at reduced blanking |
|
| Memory |
Standard |
512-MB, 1024-MB or
2048-MB 533-MHz or 667-MHz DDR2 SDRAM; two SODIMM slots
supporting dual channel memory |
| Maximum |
Upgradeable to
4096-MB maximum (2048-MB SODIMM in slots 1 and 2) |
| Dual-channel |
Maximized
dual-channel performance requires SODIMMs of the same size and
speed in both memory slots. |
|
NOTE: Due to the non-industry standard nature of some
third-party memory modules, we recommend HP branded memory to
ensure compatibility. If you mix memory speeds, the system will
perform at the lower memory speed. Above 3-GB, all memory may
not be available due to system resource requirements. |
|
|
Communications |
Integrated
Broadcom NetXtreme Gigabit Ethernet PCI Express Controller
(10/100/1000 NIC)* |
| 56K V.92 modem**
with digital line guard |
| * The
term "10/100/1000" or "Gigabit" Ethernet indicates compliance
with IEEE standard 802.3ab for Gigabit Ethernet, and does not
connote actual operating speed of 1 Gb/s. For high-speed
transmission, connection to a Gigabit Ethernet server and
network infrastructure is required. |
| **
Designed for downloads from 56K modem compliant sources. Maximum
achievable download transmission rates currently do not reach 56
KB/s, and will vary with line conditions. Modem availability is
subject to country regulatory approval. |
|
|
Wireless Devices |
Support for a broad range of secure, integrated wireless LAN
options featuring support for the latest industry standards.
Integrated Bluetooth is also an option (factory configurable
only) and can be combined with any of the supported wireless LAN
options. |
| All integrated
wireless LAN options |
Wi-Fi certified
Cisco Compatible Extensions support (Version 3.0)
Wired Equivalent Privacy (WEP) support up to 128-bit keys
Wi-Fi Protected Access (WPA) and WPA2 support
802.1x authentication support, including EAP-TLS, EAP-TTLS,
PEAP-GTC, PEAP-MSCHAPv2, and LEAP
Advanced Encryption Standard (AES) support
WiFi certified for WPA2, WMM
Dual antennas integrated in the display enclosure |
| Intel
PRO/Wireless 3945ABG Network Connection |
Intel Centrino
mobile technology
Integrated support for 802.11a, b and g
Up to 54-mbps data rate
|
| HP Integrated
Module with Bluetooth 2.0 Wireless Technology |
Bluetooth
Specification v2.0 compliant
Works with a wide range of Bluetooth devices |
|
| Keyboard |
The 101/102-key
compatible keyboard features an industry standard, full-pitch
key layout with desktop keyboard features, such as the isolated
inverted-T cursor control keys, editing keys, both left and
right control and alt keys, and 12 function keys. US and
International key layouts are available. Other features include
an integrated numeric keypad, hotkeys for instant access to
power conservation, brightness, and other features, 19-mm x
19-mm key pitch (centre-to-centre spacing), 2.5-mm stroke,
comfort-dished keycaps, and bright key legends for improved
visibility in low light conditions. |
|
| One-Touch
Productivity Buttons |
Provide one-touch
access to the following features: HP Info Centre, Wireless
On/Off, Presentation Mode, Volume Up, Volume Down, and Volume
Mute |
|
| Pointing Device |
Dual pointing
devices:
Touchpad with scroll zone, two soft-touch buttons
and
Pointstick, two soft-touch buttons |
|
|
Expansion Card Slots |
One Type I/II PC
Card slot |
Supports 32-bit
CardBus and 16-bit PC Cards |
| Integrated Smart
Card Reader |
Compatible with
ISO 7816 compliant Smart Cards
PC/SC interface support |
|
| Media Slots |
Secure Digital
slot |
Supports SD
(Secure Digital), MMC (MultiMedia Card) |
|
|
Storage |
Hard Drives |
80-,
5400 rpm SMART SATA |
|
NOTE: These hard drives are customer removable and will
withstand multiple insertion/removal cycles. Up to 8 GB is
reserved for the system recovery software. |
| HP Mobile Data
Protection System 3D |
Hard
drive is mounted directly to the notebook frame, reducing the
transmission of shock to the hard drive. Uses three-axis digital
motion detection with intelligent sensitivity to help protect
the hard drive during normal use from shock and vibration. |
| Optical Drives |
MultiBay II
(9.5-mm) |
DVD+/-RW
SuperMulti MultiBay II Drive with Double Layer |
|
|
Interfaces |
PC Card Slot |
One Type I/II
|
| Smart Card
Reader |
One |
| External
Monitor |
One – VGA |
| External
Microphone |
One |
| Headphone/Line
out |
One |
| Power Connector |
One |
| RJ-11
(Modem) |
One |
| RJ-45 (NIC) |
One |
| Fast Infrared
Port |
One (4-Mb/s
support)
IrDA 4-MB compliant; IR performance will vary depending on
performance of IR peripherals and application used. |
| S-Video TV Out |
One (Support for
NTSC/PAL) |
| USB 2.0 |
Three |
| Docking
Connector |
One |
| Travel Battery
Connector |
One |
| LED Status
Indicators |
Eleven |
|
Audio
|
PremierSound
audio/speaker subsystem
ADI1981HD High Definition CODEC
Integrated 16-bit Sound Blaster Pro compatible audio
24-bit DAC
Integrated stereo speakers
Integrated microphone
External volume up, volume down, and mute buttons
Stereo headphone/line out
Stereo microphone in |
|
|
Software |
Preinstalled
Software with Windows Vista or Windows XP
|
Adobe Acrobat
Reader*
HP Mobile Print Driver* (Windows XP models)
HP ProtectTools Security Manager*:
BIOS Configuration for HP ProtectTools
Embedded Security for HP ProtectTools
Credential Manager for HP ProtectTools
HP Quick Launch Buttons
HP Wireless Assistant
HP OpenView Radia Management Solutions*
Sonic Digital Media Plus* (Windows XP models):
RecordNow! (for optional DVD+/-RW and DVD/CDRW drives)
MyDVD (DVD Authoring for optional DVD+/-RW drives)
Roxio Creator 9 (Window Vista models with optional DVD+/-RW or
DVD/CDRW drives)
Synaptics Touchpad Driver
Symantec Norton Internet Security* with complimentary 60-day
live update
Intervideo WinDVD* – DVD Player (for optional DVD+/-RW, DVD/CDRW
and DVD drives) |
| |
| |
Additional
software available from the Web |
HP Client Manager
Software
Smart Card Security for HP ProtectTools
Device Access Manager for HP ProtectTools |
| SMBIOS Version 2.4 |
System Management
BIOS, previously known as DMI BIOS, is used to store system
management information. |
|
| HP ProtectTools
Security Manager |
HP ProtectTools
Security Manager is the security platform for business notebooks
and desktops. The HP ProtectTools Security Manager is an
extensible client security console that delivers enhanced
security capabilities through add-on software modules. Modules
currently available are:
- Smart Card Security for HP ProtectTools
- BIOS Configuration for HP ProtectTools
- Credential Manager for HP ProtectTools
- Embedded Security for HP ProtectTools
- Device Access Manager for HP ProtectTools |
|
|
Security |
Standard
Features
|
HP ProtectTools
Security Manager
HP Biometric Fingerprint Sensor
Integrated Smart Card Reader
TPM 1.2 Embedded Security Chip*
Configuration Control Hardware
Memory Change Alert
Ownership Tag
Setup Password
Power-On Password
DriveLock
TPM Enhanced DriveLock*
HP Disk Sanitizer
Kensington Lock Slot
Support for Computrace / LoJack for Laptops (must be purchased
separately) |
*NOTE: TPM module
disabled where use is restricted by law; for example, Russia.
For more information on HP security solutions refer to
http://www.hp.com/go/security. |
|
| Power Supply |
External Smart AC
Adapter (65-watt standard with integrated graphics; 90-watt
standard with discrete graphics), 6-foot (1.8-metre) power cord
included.
Total length including External AC adapter is 12 feet (3.66
metre).
HP Fast Charge Technology* |
| *Fast
Charge Technology recharges your battery up to 90% within 90
minutes when the system is off. Fast Charge Technology does not
apply to 12-cell Ultra Capacity batteries. |
|
| Battery |
Primary Battery |
55Wh 6-cell
Lithium-Ion |
|
|
Battery Life |
|
6-cell Primary
with integrated graphics |
Primary Battery
|
Up to 6 hours |
|
NOTE: Battery life will vary depending on the product
configuration, product model, applications loaded on the
product, power management settings of the product, and the
product features used by the customer. As with all batteries,
the maximum capacity of this battery will decrease with time and
usage. |
| System Standby
Time |
Up to 1 week |
|
|
| Power
Conservation |
Supports enhanced
Intel SpeedStep technology with Intel Core Duo and Intel Core
Solo processors (allows Battery Optimized Mode, Maximum
Performance Mode, or Automatic mode) |
Intel Display
Power Saving technology (models with integrated graphics)
ATI PowerPlay technology (models with discrete graphics) |
| Hibernation |
| |
Standby |
| |
ACPI compliance |
|
|
Docking |
HP Docking Station
HP Advanced Docking Station
HP External MultiBay II
HP Adjustable Notebook StandHP's shared docking solutions
provide simple and convenient port replication and cable
management. Features include Gigabit NIC pass through, modem
pass through, legacy parallel and serial ports, S-video TV out,
USB 2.0 ports, integrated security mechanism*, integrated
MultiBay II and ExpressCard** slots. These docking solutions are
compatible across multiple Business Notebook platforms enabling
a lower total cost of ownership. |
* HP/Kensington Cable Lock required (purchased separately)
** HP Advanced Docking Station only |
|
|
 |
 |
|
IC Gear/Manhattan
Standard Nylon Carry Case
for $19.00 |
Soft Polyester, outer shell,
Front compartment for accessories,
Mid compartment for documents and laptop
computer,
Extra zipper enclosed compartment,
Expandable!
Dimensions: L39 x W29 x H15 (cm |
|
|
|
 |
This
item is entitled to our %100 Satisfaction Guaranteed
We recognize that ordering refurbished laptops on the Web, requires
trust. If you've ever bought laptops from us, you know firsthand how
tough our standards are. By enforcing strict quality guidelines, we can
guarantee that every laptop we sell, new or refurbished, is a good
purchase. If you're not satisfied, simply return the laptop in its
original condition within 3 days of receipt, and we'll credit your
account for the full amount of the laptop. (excluding shipping and
handling).
100% satisfaction is our goal: ordering, shipping, customer service and
selection. If you are unhappy with your purchase for any reason, please
contact us immediately. We will do everything we can to make things
right or your money back no questions asked.
|
|
|
|

The
HP Pavilion nc6400 laptop
is entitled to laptopcloseout 3 months warranty, this warranty is
valid and starts as of the day you receive your laptop, this is a full
warranty meaning it includes all hardware parts of the unit including
battery (first Year) , in event of experiencing any hardware problem customers can
call 1-800-473-7991 |
|
|
 |
 |
|
The
HP Pavilion nc6400 laptop
is entitled to laptopcloseout technical support,
customers with difficulties or questions regarding
hardware operation of the laptop can email tech support
support@laptopcloseout.com or call toll free at
1-800-473-7991, tech support is available 6 days a week
within business hours. |
|
|
|
|
 |
Period: |
3 months
warranty |
| Type: |
Parts and labor,
back to depot for repair or replacement |
| Includes: |
All hardware
components including battery |
| Cosmetics: |
Factory
refurbished Grade A |
-
Contact: For warranty and support information, please phone at
416-816-3235 or e-mail
Support@laptopcloseout.com
-
Technical Support: Please phone Tech Support at 416-816-3235 or e-mail
Support@laptopcloseout.com
-
Additional Information: Warranty does not cover misuse or mishandling
of equipment and user-installed parts & upgrades. Shortages, missing or
damaged items must be reported to Omni Systems within 2 days of receipt. All
returns must have RMA# by OMNI SYSTEMS prior to shipping/returns. Purchaser
is liable for one way shipping costs (after DOA period), for all merchandise
returned to OMNI SYSTEMS for exchange or warranty repairs
|
|
|
|
|
|
