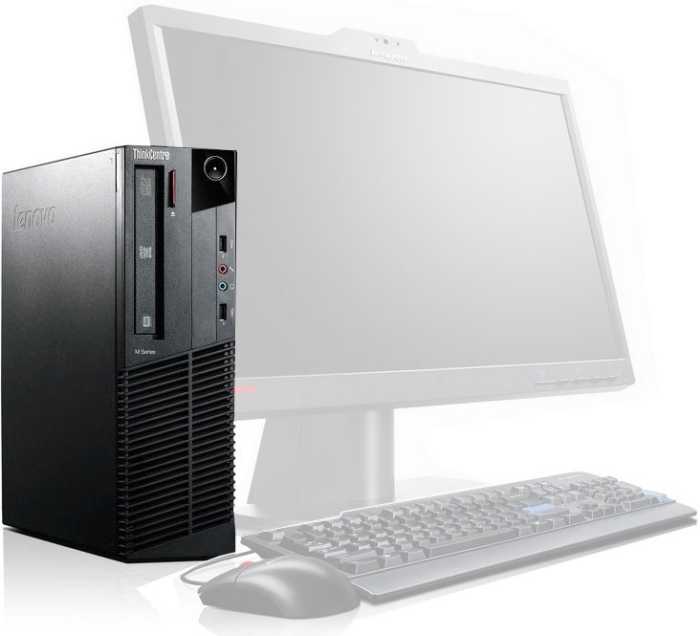

Lenovo Thinkcenter M90p SFF

lenovo ThinkCenter M90p SSF

• Refurbished grade a minus condition (very good) with 1 year warranty parts and labor

Experience ultimate performance and multi-tasking of applications with the latest family of Intel ® Core™ i series processors, offering Intel ® Turbo Boost and Intel ® Hyper-Threading technologies. The ThinkCentre M90 / M90p gives excellent graphics experience and has a clear edge over existing desktops.

Productivity gets a real boost with the preloaded new Windows ® 7 Lenovo Enhanced Experience which has very fast boot-up and shutdown times with multi-touch support. Get a full PC experience, data security, remote data management and worry-free storage with the latest Secure Managed Client (SMC) 2.0 and Intel ® vPro™ technologies. These in turn drive down costs, downtime and desk-side visits.

The Active Management Tool, a part of Intel ® vPro™ technology is designed to work independently of the operating system. Ergonomically designed ThinkCentre M90 / M90p offers the Power button on top, thus avoiding the need to bend to turn your PC on. The tilted front design of I/O ports allows to plug-and-play devices easily and the top carry handle offers easy portability.

Lenovo M90p high-performance

• features 81% better performance with Intel ® Core™ i series processors

• 35 Second Boot Up with Lenovo Windows

• environment -friendly features Uses up to 42% Post Consumed Content

• Reduces noise with the cat-foot cushion (Tower only)

• Latest Managea BiLiTy anD Security features Supports the latest SMC 2.0 and Intel

• ® vPro™ technologies Reduces password-reset time of hard drives—Hardware Password Manager tool Preloaded ThinkVantage

Architecture

System board / Form factor
Small (2X3) form factor with Intel Q57 Chipset
Bandwidth DDR III 1066/1333,Dual channel
Supports upto 8GB RAM and cache of 8GB

Processor
Intel® Pentium® Processor G6950 with dual-core
Intel Core® Processor i3-530 with dual-core
Intel Core® Processor i3-540 with dual-core
Intel Core® Processor i5-750 with quad-core
Intel Core® Processor i5-650
Intel Core® Processor i5-660
Intel Core® Processor i5-670 with dual-core
Processor in LGA1156 socket

Cache
8MB to 32MB cache, processor dependent

Chipset
Intel Q57 Express Chipset
Platform Controller Hub (PCH) for PCI, ethernet and USB
SMSC® SCH5147 Super I/O

Memory
2GB standard, supports upto 8GB maximum
UDIMM, PC3-10600 1333MHz DDR3, four 240-pin DIMM sockets

Audio
Integrated ADI Audio
High Definition (HD) Audio, Realtek® ALC662 codec, 5.1 Chipset
Keyboard and mouse
Lenovo Preferred Productivity Full Size Keyboard
Fingerprint Keyboard
Ultraslim Wireless kit -keyboard
USB OptiCal Wheel Mouse - 400dpi

Communications Networking
One gigabit ethernet port
Intel 82578DM, Wake on LAN®

Expansion Bays
One 3.5 inch external accessible bay (Memory Card Reader)
One 3.5 inch internal hidden bay (HDD, 2nd optional)
One 5.25 inch external half-high bay (optical drives)

External ports
Eight high speed USB connectors (two on front panel and Six on rear panel)
One integrated VGA port
One Integrated Display port
Ethernet connector
Two USB 2.0 planar connections (1 used, one open for media reader or 2 rear USB ports)
Two audio connectors (microphone in and audio out) on front panel
Three audio connectors (line in, audio out and microphone in) on rear panel
Two PS/2 for keyboard and mice

Slots
One half-length, full-height, 32-bit PCI 2.3
One half-length, full-height, PCI Express x16

Power

Power management
Advanced Configuration and Power Interface (ACPI) support
Power supply
280 watts with variable speed fan, autosensing, 85% PSU
280 Watt (Japan), 80% plus, auto-sensing power supply unit
115 to 230 Volt; 50 to 60 Hz

Security

Security chip (see information on left)
One lock to secure both cover and entire system to fixed object:
Padlock loop (in rear for opt padlock)
Security slot (in rear for optional Kensington® MicroSaver® cable)
Power-on password
Hard disk password
Boot sequence control
Boot without keyboard and mouse
Serial port I/O control
Individual USB port disablement
Software
Operating system
Windows Vista Home Basic 32-bit SP1
Windows Vista Business 32-bit SP1
Windows 7 Professional 32-bit
Windows 7 Professional 64-bit
Windows 7 Home Premium 32-bit
Windows 7 Home Basic 32-bit
Windows XP Home SP3 (For LC only) License (Free DOS for Lenovo China) SP1 (SP2 if available) for Windows Vista Home Basic 64/ Home Premium 64/ Ultimate 64/ Enterprise 32 64 (Support Only)
Windows XP Home SP3 (Support Only)
Windows XP Professional SP3 (Downgrade from Vista Business or Windows 7)
Redhat Linux/Novell Linux/ SUSE Linux/Ubuntu Linux (Certified)

Storage

Optical drive
DVD-ROM
DVD Recordable
Media Card Reader
Multi-Slot RTS5111F Card Reader with crust
USB 2.0 Mass Storage Device (Flash)
Hard drive features
7200RPM Serial ATA supported
Flash Solid State Drive
Supports 160GB, 250GB, 320GB, 500GB and 1TB
Video
Intergrated Graphics Adapter
NVIDIA GeForce 310 512MB DDR3 (VGA+DP)
ATI Radeon HD4650
NVIDIA Quadro FX380 (DVI + DP)

• ® Technology (TVT) tools Prevents data theft—USB individual disable, PS/2

• ® ports and Intrusion switch e ergonomic -industrial Design Easy-to-carry top handle

• Power button on top of chassis

• Tilted front I/O ports design

No keyabord or mouse included
