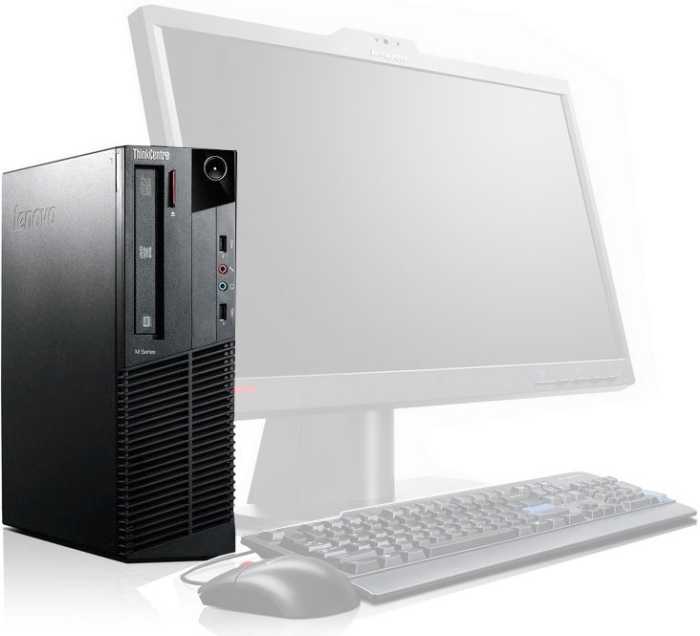

Lenovo Thinkcenter M92p SFF

lenovoThinkCenter M92p SSF

• Intel Core i5 3470 CPU at 3.1 GHz
• Intel HD Graphic
• 8GB of DDR3 Memory Standard
• Upgradable to 16GB Memory
• 500GB  SATA Hard Drive
• Dual monitor support Via Display port and VGA
• internal  DVD Drive
• Integrated Gigabit Ethernet
• High definition Audio integrated
• Audio in and out for speakers and Mic
• 1 x Display and 1 VGA Monitor ports
• USB Ports: 2 front, 6 rear, 2 internal
• PCI Slots: 2 (low profile), PCIe x1 Slots: 1 (low profile), PCIe x16 Slots: 1 (low profile),
• PCIe x16 Graphics Slot
• Windows 7 pro
• No keyboard /  mouse included
• Refurbished Grade A condition (excellent) with 1 Year Parts & Labor Warranty

M92p A COMPUTING POWERHOUSE

WITH BEST-IN-CLASS MANAGEABILITY PRODUCTIVE. STABLE. SECURE

The Lenovo ® ThinkCentre ® M92 and M92p are premium enterprise-class desktop computers optimized for high performance and manageability. M91 and M92p are the Lenovo’s first enterprise-class ThinkCentres with the 3rd generation Intel ® Core™ processor. These easily manageable desktops include Intel ® vPro™ with Intel ® Active Management Technology™ (AMT). The Intel ® AMT™ allows authorized IT personal to remotely access, diagnose, fix, manage and secure business desktops.

These superior features also deliver on maintenance cost and time savings. The Intel ® Core™ processors, employed by ThinkCentre M92 and M92p come with Hyper-Threading and Turbo Boost to multitask faster and deliver powerful performance. The ThinkCentre M92 and M92p provide smart technology to keep you competitive while optimizing your budget and business operation.

These highly scalable ThinkCentres are available in different form factors (tower and small) and can be customized to your need. The small form factor (SFF) has RAID with ODD support functions as a backup mechanism and to secure data. In addition, the M92 and M92p desktops will soon be available in ultra-small form factor (USFF).

The M92 and M92p are the fastest ThinkCentre desktops with SATA III hard disk drive and USB 3.0*. The SATA III enables data transfer at the rate of 6GB per second, which is twice as fast as SATA II. The USB 3.0* transfers data at the speed of 625MB per second − ten times as fast as USB 2.0. ThinkCentre M91 and M91p are highly productive, supporting up to four independent displays (with discrete graphics), enabling almost an extra hour of productivity each day.

Lenovo’s Hardware Password Manager, available as optional software, enables complete remote and central management of keys and passwords for self-encrypting hard disk drives. The Secure Managed Client (SMC) 2.0 solution helps businesses to reduce IT costs with the potential to save up to 40% 1 expenditure over three years as compared to a managed PC environment and provides savings up to 63% 1 in total cost of ownership as compared to a virtual desktop implementation.

The ThinkCentre M92 and M92p are the most power savings business desktops and come equipped with features like the Energy Star ® compliant Power Supply Unit and the Lenovo Power Manager tool. The Lenovo Enhanced Experience for Windows ® 7 helps the system boot up faster than an average computer. In additional to manageability, performance and reliability, the ThinkCentre M92 and M92p come with award-winning base warranty service and support – for complete peace of mind. The Lenovo’s ThinkPlus ® Priority Support gives IT department the freedom to access the Lenovo Technical Support to troubleshoot PC hardware and software issues and manage overhead cost.

 STABLE TECHNOLOGY AND STRONG SECURITY

 The ThinkCentre ® M92 and M92p provide great return on investment with:

• Intel ® Stable Image Platform Program (SIPP), enabling a predictable transition from one technology generation to the next

• Embedded Trusted Platform Module (TPM) chip for data protection

• Lenovo’s Hardware Password Manager 2 (HPM) for exclusive hard drive protection

• Options to enable or disable USBs individually for extended PC security

MANAGEABILITY IN A BREEZE

The ThinkCentre M92 and M92p are designed with the latest features for secure system management. These include:

• Latest Intel ® vPro™ technology with Intel ® AMT™ for enhanced remote support and maintenance

• Tool-less chassis simplifies maintenance tasks by enabling easy access to the chassis

• Asset Recovery Service returns maximum value on PC transitions

ESSENTIAL PRODUCTIVITY

The ThinkCentre M92 and M92p is improved for faster productivity and performs better with the:

• Support for four independent displays with discrete graphics card

• Use of RAID with ODD support (on SFF) that also enhances data security

FASTER DATA TRANSFER

The ThinkCentre M92 and M92p enable faster port transfer speeds with:

• new SATA III hard disk drives that transfer data twice faster than the previous SATA II hard disk drives

• SuperSpeed USB 3.0* with the ability to transfer data ten times faster than USB 2.0

SPECS

Memory : 32GB max, UDIMM, PC3-12800 1600MHz DDR3, four 240-pin DIMM sockets

Graphics : Intel HD Graphics 2500 or Intel HD Graphics 4000 in processor, uses main memory, DirectX 11, one VGA, one DisplayPort, supports dual independent display; Maximum resolution: 2560x1600 (DisplayPort, VGA)@60Hz DP dongle None

Disk : SATA 6.0Gb/s 7200 rpm

Optical : Super Multi-Burner DL DVD±RW SATA 1.5Gb/s Drive

SATA controller : Serial ATA, SATA 3.0Gb/s and SATA 6.0Gb/s, integrated in chipset, RAID 0/1 support

Onboard SATA : Two SATA cables (each 1-drop to device), two SATA 6.0Gb/s connectors, one SATA 3.0Gb/s connector, and one eSATA connector

WIFI: None

eSATA port : None

Media reader : None

Chipset : Intel Q77 Express Chipset

Front ports : Two USB 2.0, microphone (stereo, 3.5mm), headphone (stereo, 3.5mm)

Rear ports : Four USB 3.0, two USB 2.0, serial (9-pin), ethernet (RJ-45), VGA DB-15, DisplayPort

Rear audio ports : Line-in (stereo, 3.5mm), line-out (stereo, 3.5mm), microphone-in (stereo, 3.5mm)

Internal connector : Two USB 2.0 planar conn (1 used; one open for additional USB devices), one internal DisplayPort connector

Audio : High Definition (HD) Audio, Realtek ALC662 codec

Speaker : Internal speaker for business audio

IEEE 1394 : None

Ethernet : One gigabit ethernet port, Intel 82579, Wake on LAN Intel AMT Intel Active Management Technology 8.0 (Intel AMT 8.0)

Modem : None

Security chip : Trusted Platform Module (TPM1.2-compliant)

Keyboard : None

Mouse : None

Floor Stand System : floor stand for vertical orientation

Power supply : 240 watts, autosensing, 85% PSU,

Power Cable : included

Monitor Cable : VGA cable included

Machine : black color; metal case

● 13.3" W X 15.2" D X 3.9" H
● 338mm W X 385mm D X 100mm H
● 16.5 lb (7.5 kg) in maximum configuration
● Toolless cover flips up and tilts backward on rear hinges
● Toolless disk and optical drive removal
● Toolless adapter retention

Bay Bay 1: 5.25", 1.6" high, access, std optical
Bay 2: 3.5", 1" high, no access, std disk
Bay 3: 3.5", .5" high, access, opt reader
Slot Slot 1: Low Profile, PCI Express 2.0 x16 (45w max)
Slot 2: Low Profile, PCIe 2.0 x1
Slot 3: Low Profile, 32-bit PCI 2.3
Slot 4: Low Profile, 32-bit PCI 2.3
